Stopper Material (Color)
- Polyacetal (White)
Screw Material
- EN 1.7220 Equiv.
Screw Dia. (Coarse) M
- 10
Length L Dimension(mm)
- 40
Type
- PUSS
CAD
- 2D
- 3D
Becsült szállítási napok
- Minden
- Aznapi feladás lehetséges

stopper bolts / hexagon socket / regular thread / 10.9 / PUR, POM Protective cap, front / steel, stainless steel / galvanised / A90 (PUSS10-40)

Katalógus1-1721. o.

Cikkszám:

PUSS10-40

Törlés

Vázlatrajz és specifikációs táblázat
Cikkszámlista
Részletes információk
Katalógus

Vázlatrajz és specifikációs táblázat

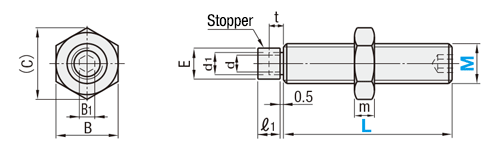

Dimensional Drawing

[ ! ] Excessive tightening may damage the plastic tip.

Product Specifications

Type	Stopper		Screw			[A]Accessory (Hex nut)		Resin, rubber How to mount
Type	[M] Material	[ H ] Hardness	[M] Material	* Strength class	[S] Surface treatment	[M] Material	[S] Surface treatment	Resin, rubber How to mount
USS	Urethane (Black) (Ester urethane)	Shore A90	EN 1.7220 Equiv.	10.9	Trivalent Chromate	EN 1.0038 Equiv.	Trivalent Chromate	Bonded
USUS	Urethane (Black) (Ester urethane)	Shore A90	EN 1.4301 Equiv.	A2-21H	—	EN 1.4301 Equiv.	—	Bonded
PUSS	Polyacetal (white)	—	EN 1.7220 Equiv.	10.9	Trivalent Chromate	EN 1.0038 Equiv.	Trivalent Chromate	Press-fit
SPUS	Polyacetal (white)	—	EN 1.4301 Equiv.	A2-21H	—	EN 1.4301 Equiv.	—	Press-fit

Only the urethane stopper part at the tip is not sold. (Standard products are not available)

Specification Table

Part Number	—	L
USS6	—	30

Part Number		L Selection											ℓ₁	d	E	d₁	t	B	B₁	(C)	m
Type	M (Coarse)	L Selection											ℓ₁	d	E	d₁	t	B	B₁	(C)	m
USS USUS PUSS SPUS	4	10	15	20	25	30	35						4.5	1.6	3.1	2.1	3	7	2	8.1	2.4
	5	10	15	20	25	30	35	40						2.2	4	2.6		8	2.5	9.2	3.2
	6		15	20	25	30	35	40	45	50	60			2.6	4.8	3		10	3	11.5	3.6
	8				25	30	35	40	45	50	60		5.5	5.1	6.5	5.5	4	13	4	15	5
	10					30	35	40	45	50	60	70	5.5	6.9	8.3	7.3	4	17	5	19.6	6
	12					30		40		50	60	70	6	8	10	8.6	4.5	19	6	21.9	7

Product Specifications

Mass (g) Reference values	Part Number
M	L	USS	PUSS	SPUS	USUS
4	10	1	1	1	1
	15	2	2	2	1
	20	2	2	2	2
	25	2	2	2	2
	30	2	3	3	3
	35	3	3	3	3
5	10	2	3	2	2
	15	3	2	2	3
	20	3	3	4	3
	25	4	4	4	4
	30	6	4	5	4
	35	5	5	5	5
	40	5	5	5	5
6	15	4	4	4	4
	20	5	5	5	4
	25	5	5	6	6
	30	6	7	7	7
	35	7	7	8	7
	40	8	8	8	8
	45	9	9	9	9
	50	10	10	10	10
	60	12	12	11	10
8	25	11	11	12	11
	30	13	13	13	13
	35	14	14	15	15
	40	16	16	16	16
	45	17	18	18	18
	50	19	19	19	19
	60	22	22	23	22
10	30	22	23	25	22
	35	25	25	25	25
	40	27	29	28	27
	45	30	31	30	29
	50	32	33	34	33
	60	37	38	39	37
	70	42	44	43	42
10	30	32	31	30	32
	40	38	39	38	39
	50	45	47	45	45
	60	53	54	54	53
	70	59	61	60	60

Cikkszámlista

Elemek száma

Cikkszám

PUSS10-40

Stopper Material (Color)

Screw Material

Screw Dia. (Coarse) M

Length L Dimension

(mm)

RoHS?

Minimális rendelési mennyiség

Polyacetal (White)

EN 1.7220 Equiv.

1 darab

Egységár (HÉA nélkül)(egységár adóval)	Normál feladási dátum

4.97 €1.49 €
( 1.77 € )

Raktári cikk: 1 munkanapAznapi kiszállítással elérhető

Részletes információk

Vázlat és specifikációk

Vázlat és specifikációk

General Information - Stopper Bolts

Stopper screw assortment and stopper screw with rubber and stopper screw with plastic and stopper screw with hexagon socket and stopper screw hardened

Stopper bolts selection details

- Material: steel, stainless steel

- Baffle head: PU, POM, MC nylon, silicone, hard rubber

- Coatings: burnished, chrome-plated, nickel-plated, zinc-plated

- Strength class: 8.8, 10.9

- Hardness of baffle head: Shore A57, Shore A70, Shore A90

- Thread diameter: M3 to M16

- Length: 10 mm to 70 mm

Description/Basics

MISUMI stopper bolts are generally used as damped and undamped stops for components and applications in mechanical engineering.
Undamped stopper bolts are protected against premature wear with hardened tips or heads. However, undamped stopper bolts may damage component surfaces. To protect the components to be stopped, a damped stopper bolt may protect the surface against damage with a rubber or plastic baffle head. In addition, MISUMI offers a stopper bolt with rubber or hard rubber in different Shore hardnesses, which can dampen the impact and reduce vibrations.
In addition to the standard threads, MISUMI also offers the stopper bolts with fine threads. The stopper bolts with fine threads enable finer adjustments compared to standard threads.
MISUMI offers Threaded Stopper Blocks as suitable and robust fastening for the assembly of the stopper bolts.

The stopper bolt can serve as a stop protection for workpiece carriers in order to protect them from damage. A stopper bolt with rubber can also reduce vibrations and oscillations to protect the goods to be transported. Often, stopper bolts are combined with industrial adjustable shock absorbers as end position damping to protect the damper from a hard end stop.
The stopper boltcan also be used alternatively in clamp.
